PENTAX LENSES

Every aspect of a PENTAX lens adheres to a strict principle of quality and design

Because photography has been at the heart of PENTAX for so long, we know how important the harmony is between a camera and its lens. PENTAX has made sure that all its components share the same synergy, resulting in perfectly smooth operation with no complications for your photography. In this new world of digital cameras PENTAX leads the market with the widest range of digitally optimized lenses, offering you every angle on the world around you, from ultra wide to ultra close with everything in between. Every aspect of a PENTAX lens adheres to a strict principle of quality and design. The integration of camera and lens is something that PENTAX has worked very hard on. We are confident that our system will match your expectations and we constantly strive to exceed them.

FIXED FOCAL LENGTH LENSES

For the ultimate in image quality, call in the help of the specialists. In our case, this means a range of exceptional “Limited Edition” fixed focal length lenses which are capable of stunning results. Each lens in our “Limited Edition” range has been designed to perform at just one focal length, resulting in superior optical performance without any of the compromises inherent in lenses designed to cover a number of focal lengths.

PENTAX “Limited Edition” fixed lenses are optics in their purest state. Small, light and housed in a sleek body they look as good as the images they help create. With a fixed focal length for almost every situation, from standard, wide to telephoto, PENTAX has ensured that purist photographers the world over are well cared for.

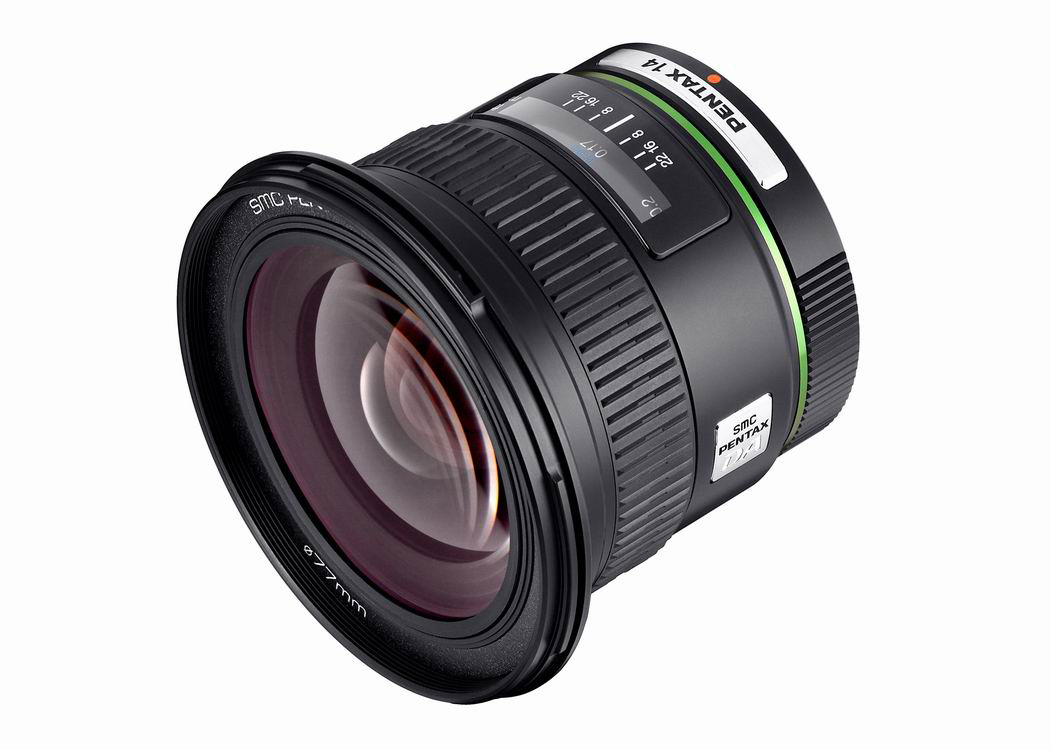

DA 14mm f/2.8 ED (IF)

OPTICAL SPECIFICATION Lens construction: 12 elements in 11 groupsAngle of view: 90°Minimum aperture: F22Minimum focusing distance: 0.17mMaximum magnification: 0.19X

PHYSICAL SPECIFICATION Lens mount: PENTAX KAF mountAperture control: AutomaticMetering system: TTL open-aperture meteringFilter size: 77mmDimensions (diameter x length): 83,5 x 69mm Weight: 420g

DA 21mm f/3.2 AL Limited Edition

OPTICAL SPECIFICATION Lens construction: 8 elements in 5 groupsAngle of view: 68°Minimum aperture: F22Minimum focusing distance: 0.2mMaximum magnification: 0.17X

PHYSICAL SPECIFICATION Lens mount: PENTAX KAF mountAperture control: AutomaticMetering system: TTL open-aperture meteringFilter size: 49mmDimensions (diameter x length): 63 x 25mm Weight: 140g

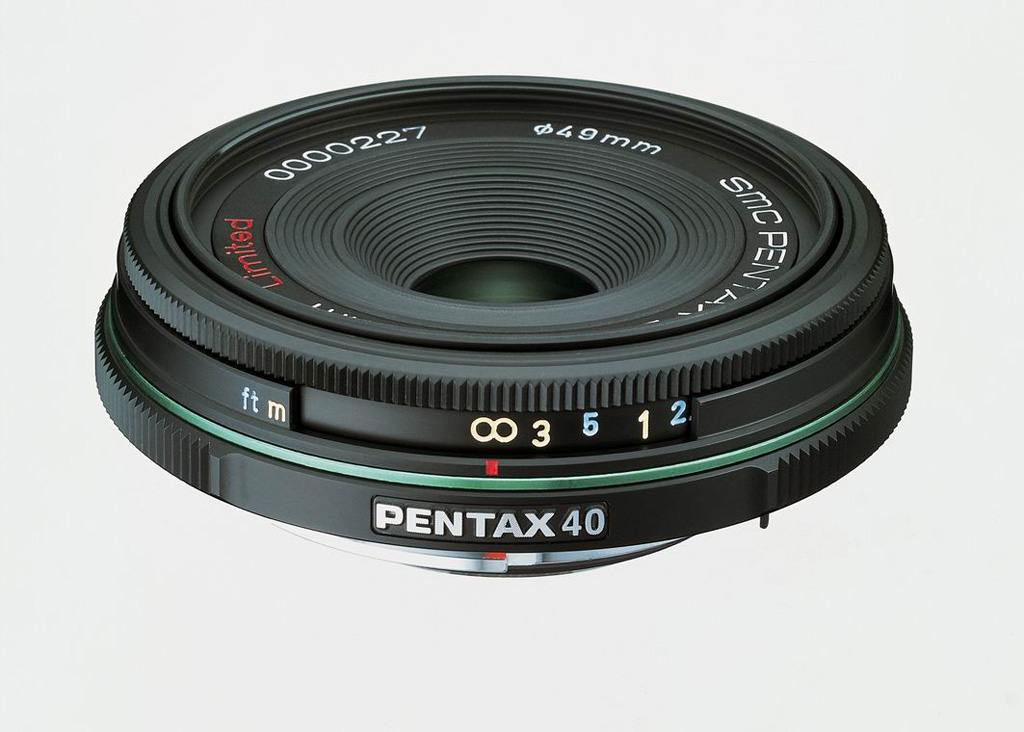

DA 40mm f/2.8 Limited Edition

OPTICAL SPECIFICATION Lens construction: 5 elements in 4 groupsAngle of view: 39°Minimum aperture: F22Minimum focusing distance: 0.4mMaximum magnification: 0.13X

PHYSICAL SPECIFICATION Lens mount: PENTAX KAF mountAperture control: AutomaticMetering system: TTL open-aperture meteringFilter size: 49mmDimensions (diameter x length): 63 x 15mm Weight: 90g

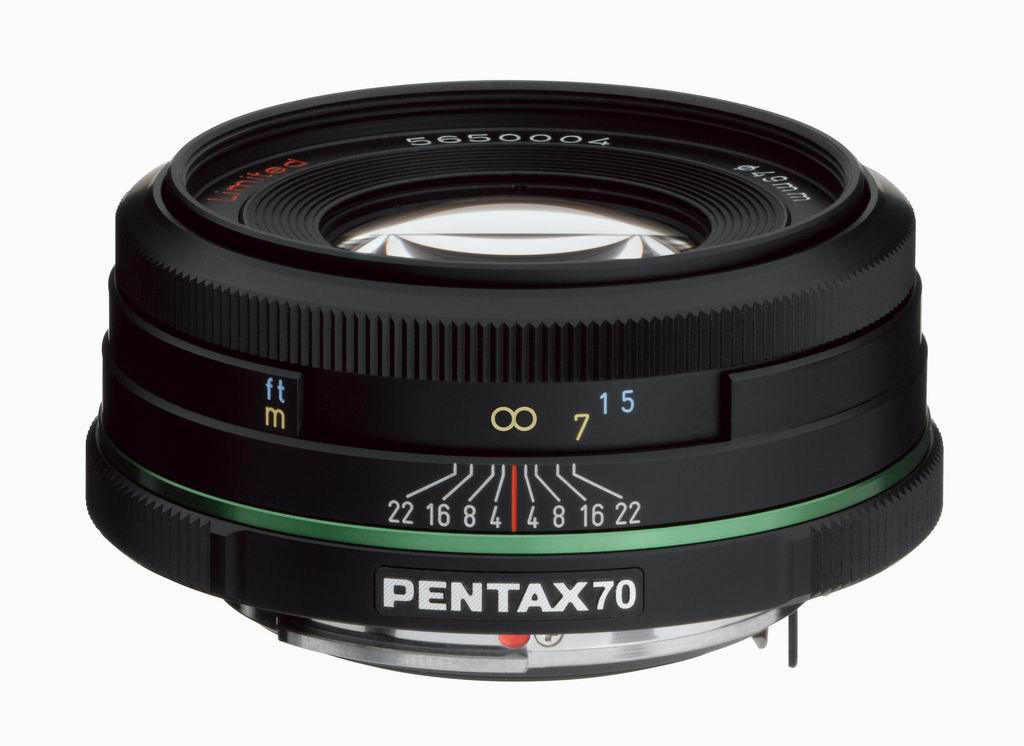

smc-DA 70mm f/2.4 Limited Edition

The smc PENTAX-DA 70mm F2.4 Limited lens, designed for exclusive use with its digital SLR cameras and featuring an ultra-thin pancake design and uni-focal, medium-telephoto optics. With its medium-telephoto perspective, this lens is ideal for many different applications, including portraiture and landscape. Its high-performance optics not only assures outstanding image quality, but also provides distinctive visual clarity. The materials used for this lens have been carefully selected for excellent handeling and useability. Thanks to PENTAX’s advanced manufacturing technology, this new lens is designed to be extremely thin and lightweight, assuring go-anywhere portability for great photography.

Optical specification Lens construction: 6 elements in 5 groupsAngle of view : 23° (with *istD or K series body)Minimum aperture: F22Minimum focusing distance: 0.7mMaximum magnification: 0.12x

Physical specification Lens mount: PENTAX KAF mountAperture control: Fully AutomaticMetering system: TTL open-aperture meteringFilter size: 49mmMax Diameter & Min Length: 63mm x 26mmWeight (Wo/hood): 130g

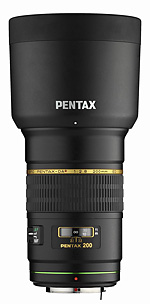

DA 200mm f/2.8 ED(IF) SDM

OPTICAL SPECIFICATION Lens construction: 9 elements in 8 groupsAngle of view: 8.1° Minimum aperture: F22Minimum focusing distance: 1.2mMaximum magnification: 0.20X

PHYSICAL SPECIFICATION Lens mount: PENTAX KAF mountAperture control: AutomaticMetering system: TTL open-aperture meteringFilter size: 77mmDimensions (diameter x length): 83 x 134mm Weight: 825g

DA 300mm f/4.0 ED (IF) SDM

OPTICAL SPECIFICATION Lens construction: 8 elements in 6 groupsAngle of view: 5.4° Minimum aperture: F32Minimum focusing distance: 1.4mMaximum magnification: 0.24X

PHYSICAL SPECIFICATION Lens mount: PENTAX KAF mountAperture control: AutomaticMetering system: TTL open-aperture meteringFilter size: 77mmDimensions (diameter x length): 83 x 184mm Weight: 1070g

ZOOM LENSES

You can’t be in the right place all the time, and for the photographer on the move a zoom lens makes a lot of sense. The steplessly variable focal length zoom allows a photographer to minutely compose the shot to the optimum. When you don’t have the opportunity or the time to properly compose an image, the zoom can prove to be a photographer’s friend. Zooms pack several focal lengths into one handy package and PENTAX offers many different solutions ranging from wide-angle zooms to telephotos. One constant remains, though, and that is the PENTAX guarantee of quality in the lightest of packages.

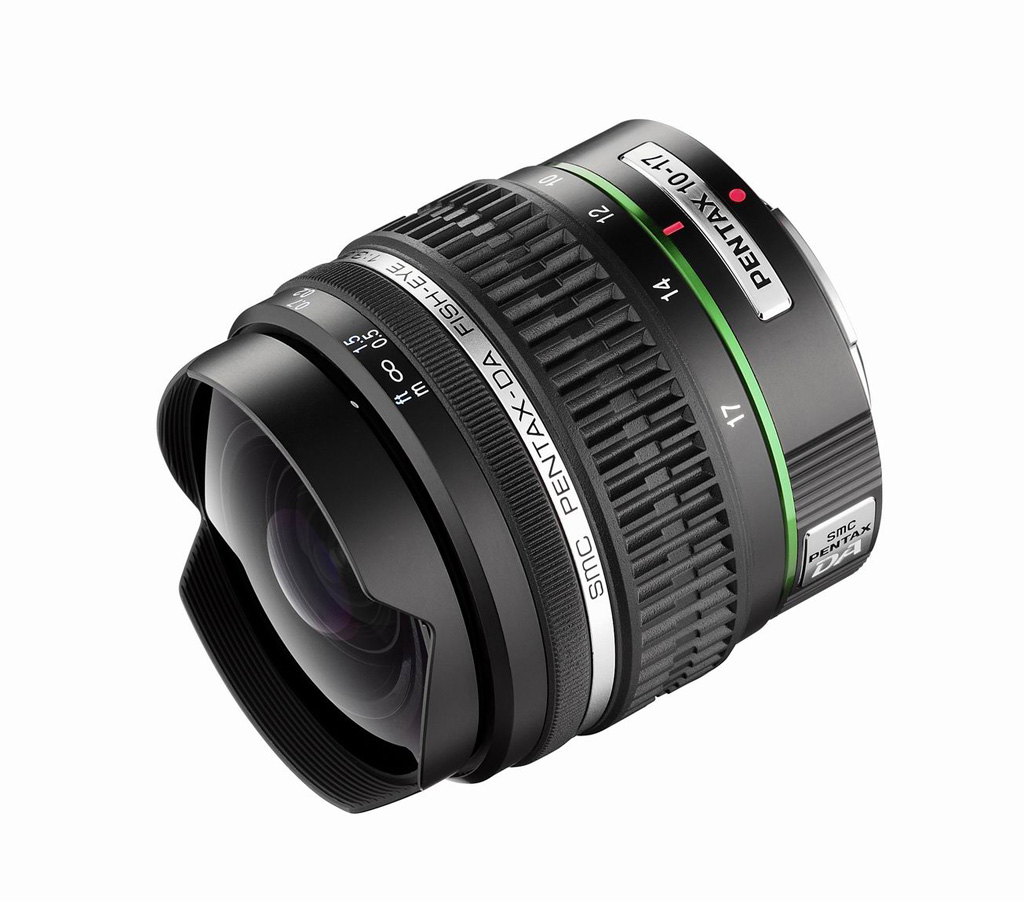

DA 10 – 17mm f/3.5 – 4.5 ED (IF) fish eye

OPTICAL SPECIFICATION Lens construction: 10 elements in 8 groupsAngle of view: 180°-100° (when used with *istD-Series camera body)Minimum aperture: F22 - F32Minimum focusing distance: 0.14mMaximum magnification: 0.39X
PHYSICAL SPECIFICATION Lens mount: PENTAX KAF mountAperture control: AutomaticMetering system: TTL open-aperture meteringFilter size: n/aDimensions (diameter x length): 71.5 x 68mm Weight: 320g

DA 12 – 24mm f/4.0 ED AL [IF]

OPTICAL SPECIFICATION Lens construction: 13 elements / 11 groupsAngle of view: 99° - 61° Minimum aperture: F22Minimum focusing distance: 0.3mMaximum magnification: 0.12X

PHYSICAL SPECIFICATION Lens mount: PENTAX KAF mountAperture control: AutomaticMetering system: TTL open-aperture meteringNumber of diaphragm blades: 8Filter size: 77mmDimensions (diameter x length): 84 x 87.5mmWeight: 430g

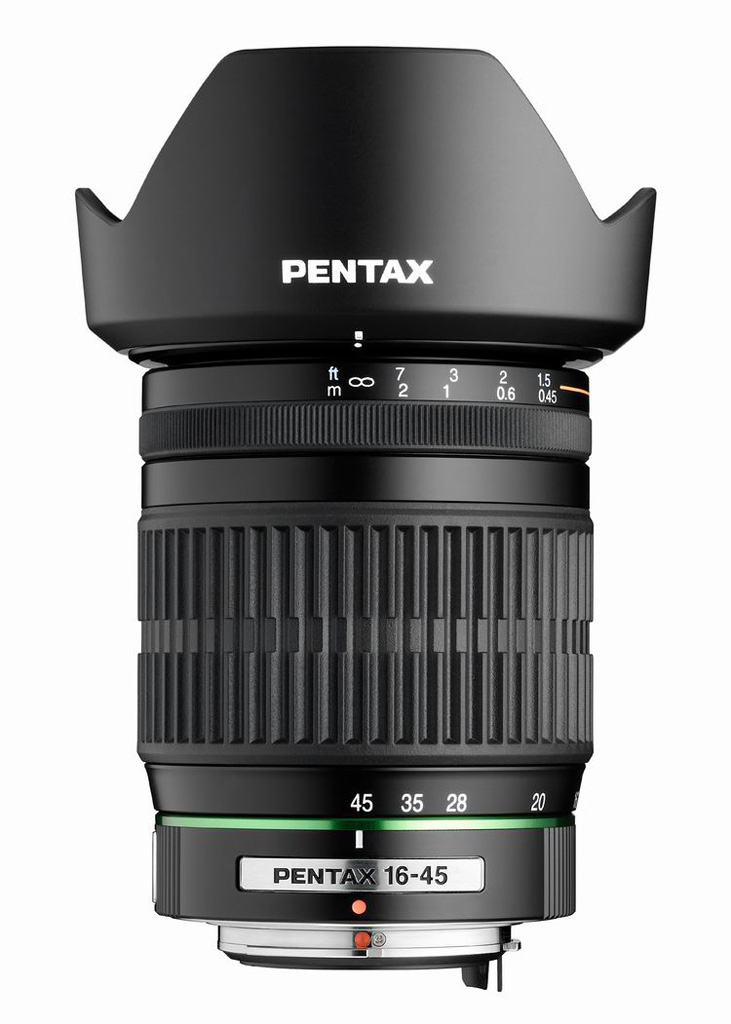

DA 16 – 45mm f/4.0 ED (AL)

Optical specification Lens construction: 13 elements in 10 groupsAngle of view: 83° - 35° (with *istD, *istDS body)Minimum aperture: 22Minimum focusing distance: 0.28mMaximum magnification: 0.26 x

Physical specification Aperture control: Fully AutomaticMetering system: TTL open-aperture meteringFilter diameter: 67mmMax diameter & Min length: 72mm x 92mmWeight (Wo/hood): 365g

DA 18-250mm f/3.5-6.3

OPTICAL SPECIFICATION Lens construction: 16 elements in 13 groupsAngle of view: 76° - 6,5° Minimum aperture: F22Minimum focusing distance: 0.45mMaximum magnification: 0.28X

PHYSICAL SPECIFICATION Lens mount: PENTAX KAF mountAperture control: AutomaticMetering system: TTL open-aperture meteringFilter size: 62mmDimensions (diameter x length): 75 x 85,5mmWeight: 455g

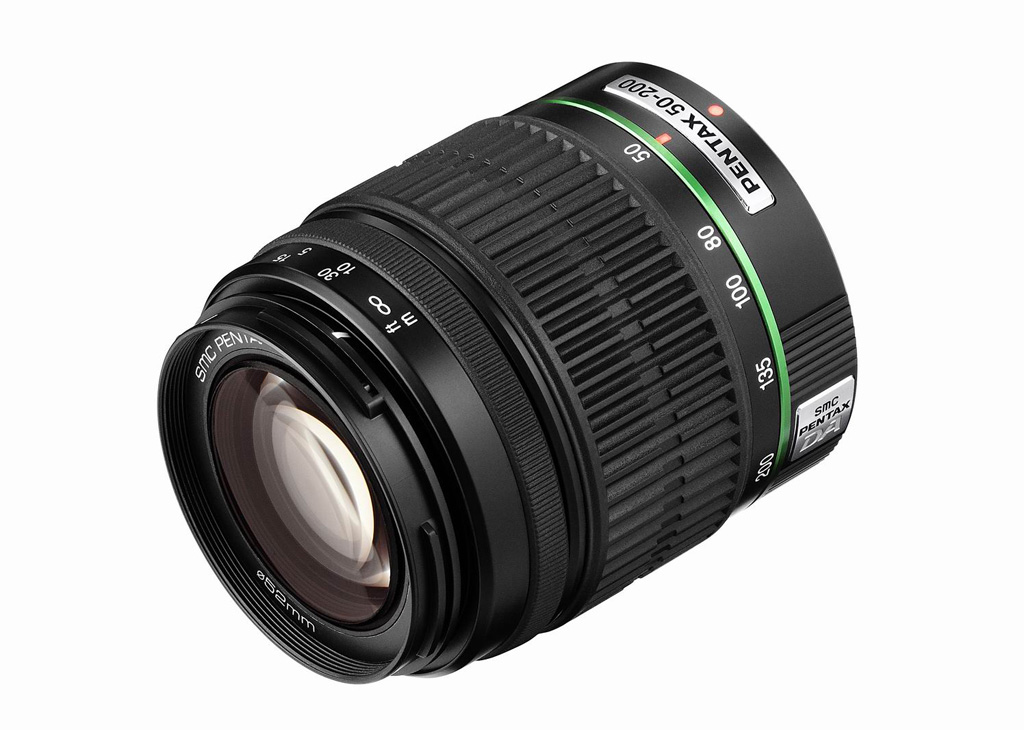

DA 50 – 200mm f/4.0 – 5.6 ED

OPTICAL SPECIFICATION Lens construction: 11 elements in 10 groupsAngle of view: 31.5° - 8.1° Minimum aperture: F22Minimum focusing distance: 1.1mMaximum magnification: 0.24X

PHYSICAL SPECIFICATION Lens mount: PENTAX KAF mountAperture control: AutomaticMetering system: TTL open-aperture meteringFilter size: 52mmDimensions (diameter x length):78,5x66.5mmWeight: 255g

DA 55-300mm f/4.0-5.8 ED

OPTICAL SPECIFICATION Lens construction: 12 elements in 8 groupsAngle of view: 29° - 5.4° Minimum aperture: F22Minimum focusing distance: 1.4mMaximum magnification: 0.28X

PHYSICAL SPECIFICATION Lens mount: PENTAX KAF mountAperture control: AutomaticMetering system: TTL open-aperture meteringFilter size: 58mmDimensions (diameter x length):71x111.5mmWeight: 440g

DA* 16 – 50mm f/2.8 ED AL [IF] SDM and smc-DA* 50 – 135mm f/2.8 ED [IF] SDM

The PENTAX DA * 16-50mm F2.8 ED/AL (IF) wide angle zoom lens and DA * 50-135mm F2.8 ED (IF) are designed for exclusive use with PENTAX digital SLR cameras, delivering the highest level of ultimate optical image quality. With aspherical elements, special optical-glass elements and original lens coatings, this lens is superior in terms of contrast, clarity and edge-to-edge sharpness. The lenses feature tightly sealed, weather-resistant and dust-resistant construction to enhance durability for use in rain or dusty conditions. It also features the PENTAX-original Quick-Shift Focus System for instant switching to manual-focus operation and PENTAX-original SP (Super Protect) coating to repel dust, water and grease. A new SDM system has been incorporated for smoother, quieter autofocusing operation using a built-in supersonic motor.

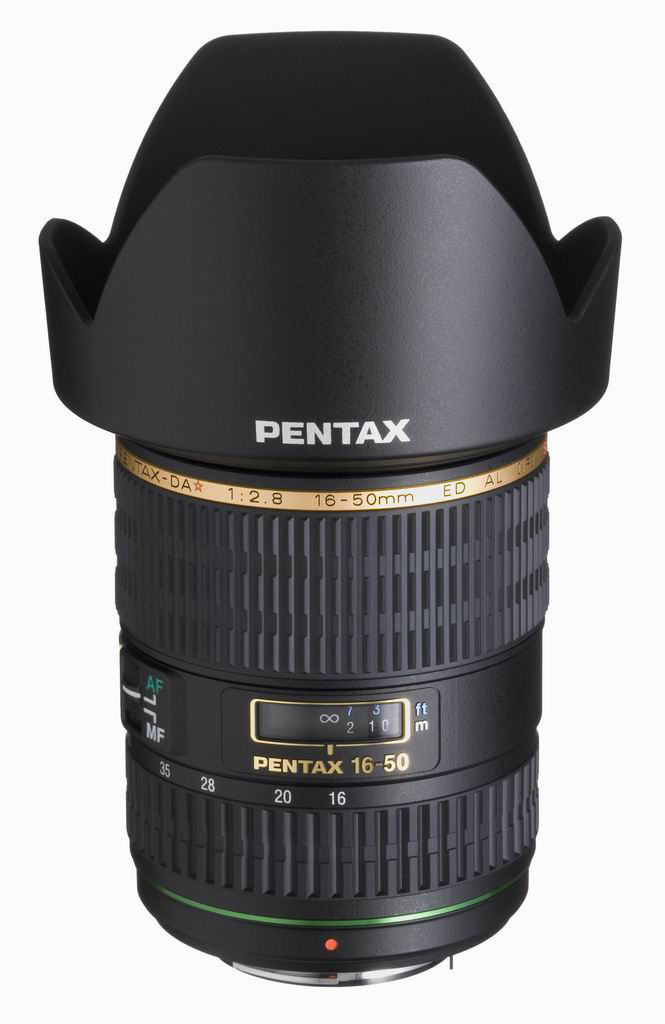

DA* 16 – 50mm f/2.8 ED AL [IF] SDM

OPTICAL SPECIFICATION Lens construction: 15 elements in 12 groupsAngle of view: 83°-31.5° (when used with DSLR camera body)Minimum aperture: F22Minimum focusing distance: 0.3mMaximum magnification: 0.21X

PHYSICAL SPECIFICATION Lens mount: PENTAX KAF mountAperture control: AutomaticMetering system: TTL open-aperture meteringFilter size: 77mmDimensions (diameter x length): 84 x 98.5mm Weight: 600g

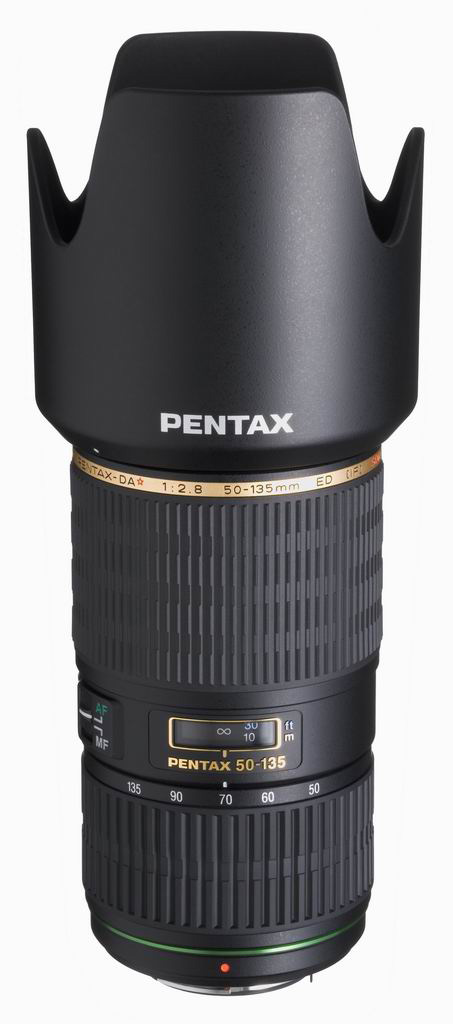

DA* 50 – 135mm f/2.8 ED [IF] SDM

OPTICAL SPECIFICATION Lens construction: 18 elements in 14 groupsAngle of view: 31.5°-11.9° (when used with DSLR camera body)Minimum aperture: F22Minimum focusing distance: 1.0mMaximum magnification: 0.17X

PHYSICAL SPECIFICATION Lens mount: PENTAX KAF mountAperture control: AutomaticMetering system: TTL open-aperture meteringFilter size: 67mmDimensions (diameter x length): 76.5 x 36mm Weight: 765g

MACRO LENSES

Distance knows no bounds when it comes to PENTAX macro lenses. We have designed our range of specialist close focusing lenses to record with razor-sharp clarity every strand end every pore of your chosen subject. Each lens is constructed to the highest standard and with zero distortion thanks to their superb optical construction you can guarantee that your macro images will draw sharp breaths of amazement from your audience. Our macro lenses require no additional accessories to attain a life size 1:1 ratio which means that the full size of the subject can be recorded onto the camera’s sensor with ease. Investigate the world in miniature and be prepared to be captivated by the possibilities of a PENTAX macro lens.

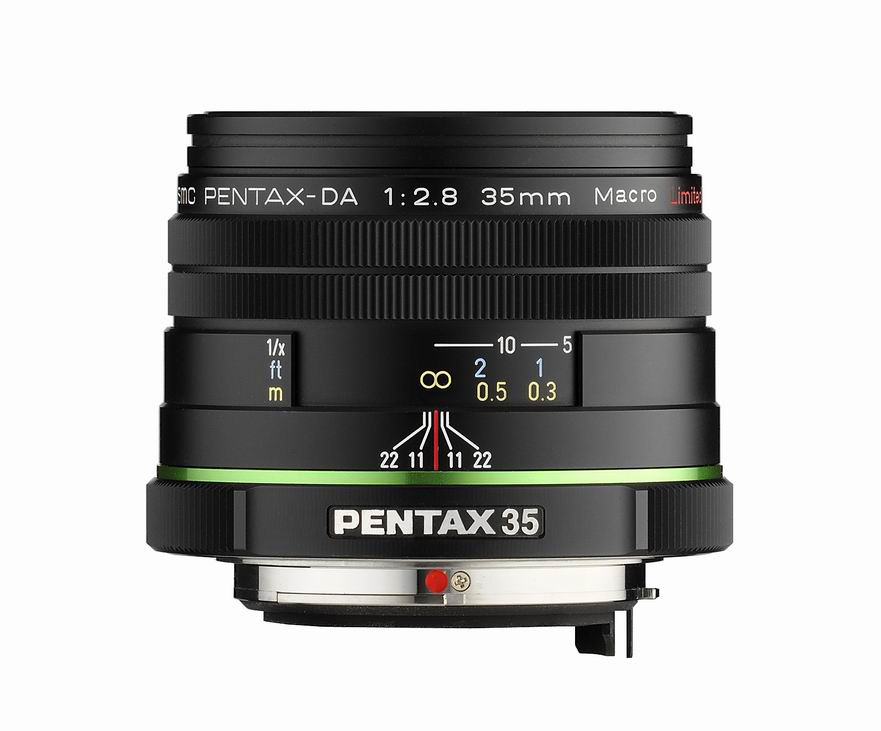

DA 35mm f/2.8 Macro 1:1 Limited edition

OPTICAL SPECIFICATION Lens construction: 9 elements in 8 groupsAngle of view: 44° Minimum aperture: F22Minimum focusing distance: 0.139mMaximum magnification: 1 X

PHYSICAL SPECIFICATION Lens mount: PENTAX KAF mountAperture control: AutomaticMetering system: TTL open-aperture meteringFilter size: 49mmDimensions (diameter x length): 63 x 46.5mm Weight: 215g

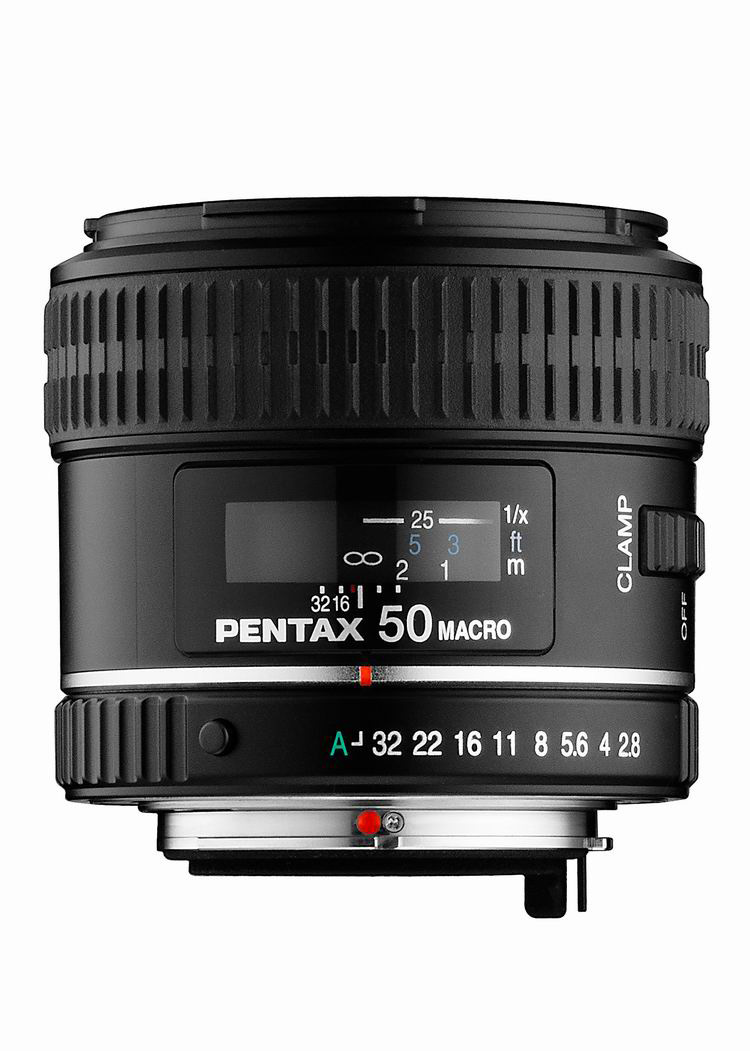

DFA 50mm f/2.8 Macro 1:1

OPTICAL SPECIFICATION Lens construction: 8 elements in 7 groupsAngle of view: 47° Minimum aperture: F32Minimum focusing distance: 0.195mMaximum magnification: 1 X

PHYSICAL SPECIFICATION Lens mount: PENTAX KAF mountAperture control: AutomaticMetering system: TTL open-aperture meteringFilter size: 49mmDimensions (diameter x length): 67.5 x 60mm Weight: 265g

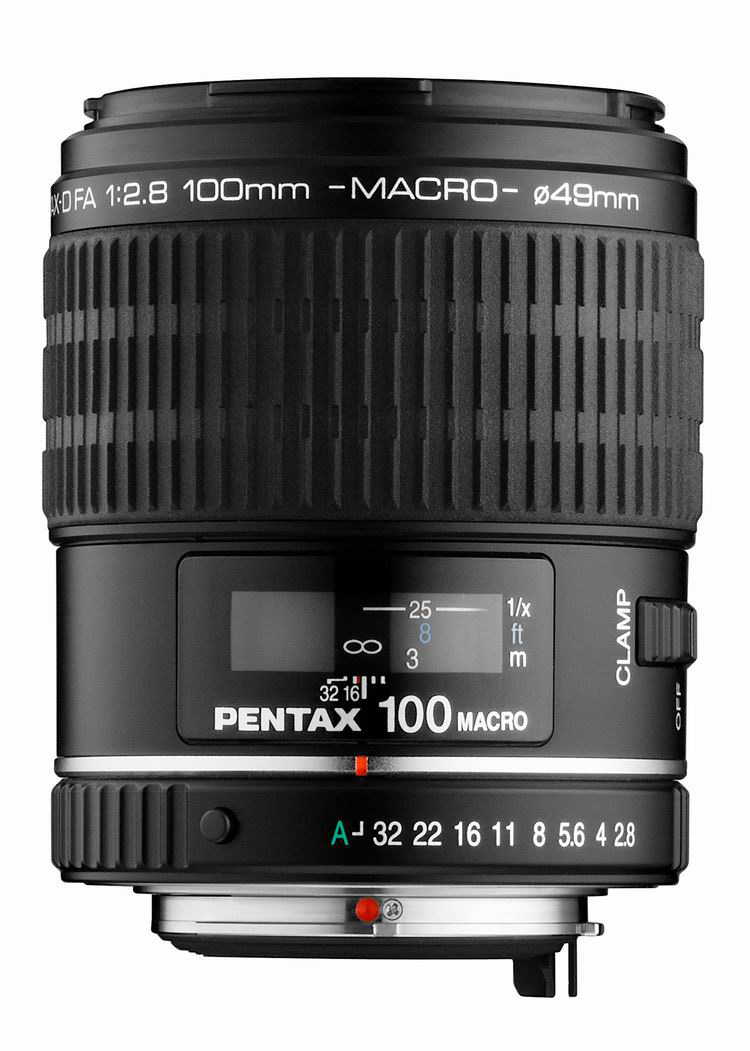

DFA 100mm f/2.8 Macro 1:1

OPTICAL SPECIFICATION Lens construction: 9 elements in 8groupsAngle of view: 24.5° Minimum aperture: F32Minimum focusing distance: 0.303mMaximum magnification: 1 X
PHYSICAL SPECIFICATION Lens mount: PENTAX KAF mountAperture control: AutomaticMetering system: TTL open-aperture meteringFilter size: 49mmDimensions (diameterx length): 67.5x80.5mm Weight: 345g

FA 31 mm / 1,8 AL Limited

DescriptionThe unique PENTAX smc FA 31mm f/1.8 Limited lens offers exceptionally high image and a wide-angle perspective. It incorporates a glass-molded aspherical lens element into its 9-element, 7-group optics, and offers sharp, crisp image reproduction, even at the maximum aperture of f/1.8. It features a beautiful aluminum body with metallic silver finish comes equipped with a flower-shaped lens hood.

Optical Specification Lens construction: 9 elements in 7 groupsAngle of view : 70° (with 35mm body)Minimum aperture: F22Minimum focusing distance: 0.3mMaximum magnification: 0.16x (with 35mm body)

Physical Specification Lens mount: PENTAX KAF mountAperture control: Automatic & ManualMetering system: TTL open-aperture meteringFilter size: 58mmMax Diameter & Min Length: 65mm x 68.5mmWeight (Wo/hood): 345g

FA 77 mm / 1,8 Limited

DescriptionThe PENTAX smc FA 77mm F1.8 Limited is a versatile, high-resolution short telephoto lens of exceptional optical quality. It is specifically designed for portrait photography and accurately reproduces the tones, colors and texture of the subject's skin, clothes and accessories as well as assuring an excellent rendering of highlight and out of focus areas. It also features PENTAX's exclusive FREE (Fixed Rear Element Extension) focusing system to ensure sharp, crisp image reproduction over the entire focusing range.

Optical Specification Lens construction: 7 elements in 6 groupsAngle of view : 31.5° (with 35mm body)Minimum aperture: F22Minimum focusing distance: 0.7mMaximum magnification: 0.14x (with 35mm body)

Physical Specification Lens mount: PENTAX KAF mountAperture control: Automatic & ManualMetering system: TTL open-aperture meteringFilter size: 49mmMax Diameter & Min Length: 64mm x 48mmWeight (Wo/hood): 270g
